Hi all

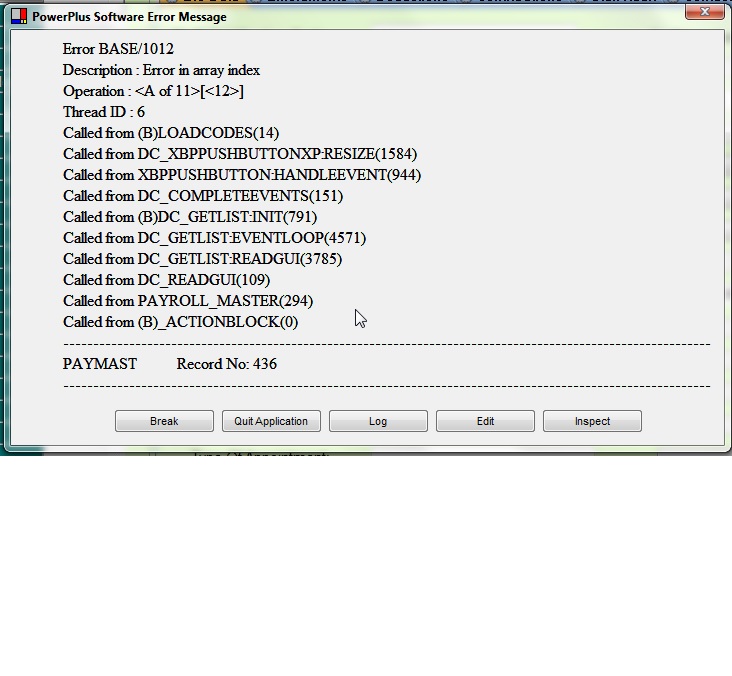

I got the bolow error with this code.

1,1 DCPUSHBUTTONXP ACTION {|| ::ScanningDevice(SCANNER_FUTRONIC_FS )} SIZE 9,3 CAPTIONARRAY {{DC_GetBitMap(JPEG_FUTRONIC_TECH ),, 5,5,90,97}} GRADIENT 1

Hi Roger,

In dclipx\_dcxbutt.prg you have

METHOD DC_XbpPushButtonXP:Resize( aOldSize, aNewSize )

LOCAL nYRatio, nXRatio, i, bResize, lResize, ;
lScaleFont, nX, nY, aPos, aSize, nCurrentCol, nCurrentRow, ;
nCurrentWidth, nCurrentHeight

nX := (aNewSize[1]-aOldSize[1])
nY := (aNewSize[2]-aOldSize[2])
IF nX = 0 .AND. nY = 0 // .AND. ::mouseMode # 1
RETURN nil
ENDIF

::isResizing := .t.

nXRatio := aNewSize[1]/aOldsize[1]
nYRatio := aNewSize[2]/aOldSize[2]
bResize := {|x,y,x1,y1,x2,y2|{x1*x2,y1*y2}}

FOR i := 1 TO Len(::captionArray)
lResize := ::captionArray[i,11]
DEFAULT lResize := .t.
IF lResize .AND. Valtype(::captionArray[i,1]) == 'O'
nCurrentCol := ::captionArray[i,11]
nCurrentRow := ::captionArray[i,12]
nCurrentWidth := ::captionArray[i,13]
nCurrentHeight := ::captionArray[i,14]
::captionArray[i,11] := nCurrentCol * nXRatio
::captionArray[i,12] := nCurrentRow * nYRatio
::captionArray[i,13] := Round(Max(nCurrentWidth * nXRatio,1),6)
::captionArray[i,14] := Round(Max(nCurrentHeight * nYRatio,1),6)
aPos := Eval( bResize, nX, nY, nCurrentCol, nCurrentRow, nXRatio, nYRatio )
::captionArray[i,3] := aPos[2]
::captionArray[i,4] := aPos[1]
aSize := Eval( bReSize, nX, nY, nCurrentWidth, nCurrentHeight, nXRatio, nYRatio )
::captionArray[i,5] := ::captionArray[i,3] + aSize[2]
::captionArray[i,6] := ::captionArray[i,4] + aSize[1]
ENDIF
NEXT

::invalidateRect()
::isResizing := .f.

RETURN nil
*
Note that you have ::captionArray subarray having up to 14 elements. I guess this is where the problem is coming from.

The express documentation stated that each subarray of CAPTIONARRAY has 8 elements.

From the sample buttonxp.prg, you defined captionarray thus:

aCaptions := { ;
{ DC_GetBitMap(BITMAP_BUG_M),, 20,10,120,100,,,}, ;
{ 'This is a', GRA_CLR_BLACK, 50, 120,,,,'24.Lucida Console',,}, ;
{ 'Really Big', GRA_CLR_RED, 140, 120,,,,'32.Arial Bold',,}, ;
{ 'Bug', COLOR_LTORANGE, 230, 120,,,,'32.Helv Bold',,} }

Thanks.

Joe.

Hi Roger

Add AUTORESIZE to DCGETOPTIONS of the buttonxp.prg sample program and resize the dialog, you get the same error.

Thanks.

Joe.

You are correct. The resize code looks all wrong. I will need to check older versions to see why.

Roger

Thanks

Waiting for your Fix.

Joe

This is going to take awhile. I have been very busy.

Why are you the only person who needs this fix?
What is it that is unique about your application?

Add AUTORESIZE to DCGETOPTIONS of the buttonxp.prg sample program and resize the dialog, you get the same error.

Here is an updated _DCXBUTT.PRG.

Copy it to your \exp20\source\dclipx folder and run BUILD19_SL1.BAT or BUILD20.BAT to rebuild DCLIPX.DLL.

Roger

Thanks.

Joe

Dear Roger

I notice that when I resize, the error no longer show BUT the bitmap Caption disappear. You can confirm it also on BUTTONXP sample. The BIG BUG caption bitmap also disappear.

Thanks.

Joe.

I will get to this when I can.
I am overloaded right now with other problems.
For now, I suggest that you add ..RESIZE DCGUI_RESIZE_NONE to your pushbuttons.
